Intex 18FT X 48IN EASY SET POOL SET, 28176GN Spare Parts

Select a season:

Original spare parts for Intex products:

18FT X 48IN EASY SET POOL SET (2017)

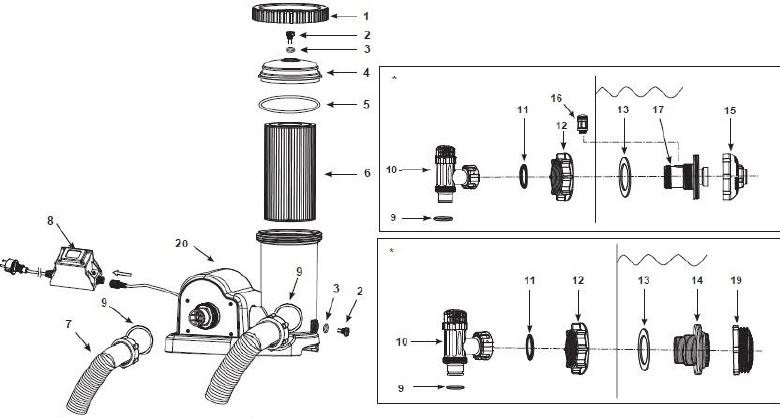

Schema: 1,500 GAL FILTER PUMP MODEL 636G

schema part no.	spare part name and number	price / pc	availability	recommended quantity
1	THREADED FILTER HOUSING COLLAR 10749	CZK 150.00	in stock	1
2	AIR RELEASE VALVE/SEDIMENT RELEASE VALVE 10460	CZK 63.00	in stock	2
3	AIR RELEASE VALVE O-RING 10264	CZK 50.00	in stock	2
4	FILTER HOUSING COVER 10750	CZK 150.00	in stock	1
5	COVER SEAL 10325	CZK 91.00	in stock	1
6	FILTER CARTRIDGE 59900/29000 (TYPE "A") 18600E	CZK 165.00	out of stock	1
7	1.5M X 1-1/2" DIA PUMP HOSE WITH NUTS 11009	CZK 261.00	in stock	2
8	TRANSFORMER FOR 56636GS 10985	CZK 2,175.00	out of stock	1
9	HOSE O-RING 10262	CZK 54.00	in stock	4
10	PLUNGER VALVE 10747	CZK 217.00	in stock	2
11	STEP WASHER 10745	CZK 65.00	in stock	2
12	STRAINER NUT 10256	CZK 65.00	in stock	2
13	FLAT STRAINER RUBBER WASHER 10255	CZK 76.00	in stock	2
14	THREADED STRAINER CONNECTOR 11235	CZK 180.00	out of stock	1
15	ADJUSTABLE POOL INLET JET NOZZLE 12369	CZK 180.00	in stock	1
16	AIR JET VALVE 12363	CZK 112.00	in stock	1
17	INLET THREADED AIR CONNECTOR 1050-1900 12371	CZK 233.00	in stock	1
18	AIR JET VALVE CAP 12373	CZK 61.00	in stock	1
19	STRAINER GRID FOR ABOVE 1000GPH CARTRIDGAE/SAND FILTER PUMP (ONLY AVAILABLE FOR COUNTRIES W/ 220-240V) 12198	CZK 106.00	in stock	1
20	1500 GAL FILTER PUMP HOUSING AND MOTOR 11472NL	CZK 3,254.00	in stock	1

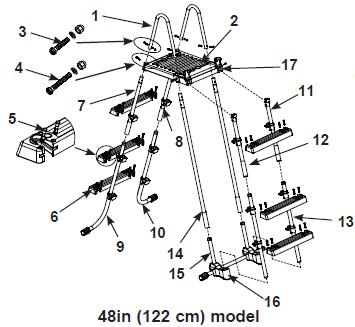

Schema: 48''LADDER WITH REMOVABLE STEPS

schema part no.	spare part name and number	price / pc	availability	recommended quantity	add to cart
1	48"&52" REMOV. STEPS LADDER U-SHAPED TOP RAIL 12512	—	unavailable	2	Not available
2	TOP PLATFORM FOR 48" & 52" REMOVABLE STEPS LADDER 12182	CZK 517.00	out of stock	1
3	SHORT FASTENER FOR TOP RAIL 10810	CZK 67.00	in stock	5
4	LONG FASTENER FOR TOP BRACE 10227	CZK 67.00	in stock	5
5	STEP MOUNTING PIN (WITH 2 EXTRA) 10913	—	unavailable	26	Not available
6	STEP 10914	—	unavailable	6	Not available
7	A SIDE-UPPER SIDE LEG (MARKED "A1" ) FOR 48" REMOVABLE STEPS LADDER 12513A	—	unavailable	1	Not available
8	A SIDE-UPPER SIDE LEG (MARKED "B1" ) FOR 48" REMOVABLE STEPS LADDER 12513B	—	unavailable	1	Not available
9	A SIDE LOWER J-LEG (MARKED "A1" ) FOR 48" REMOVABLE STEPS LADDER 12514A	—	unavailable	1	Not available
10	A SIDE LOWER J-LEG (MARKED "B1" ) FOR 48" REMOVABLE STEPS LADDER 12514B	—	unavailable	1	Not available
11	B SIDE-UPPER SIDE LEG (MARKED "A2 & B2") FOR 48" REMOVABLE STEPS LADDER 12516	—	unavailable	2	Not available
12	B SIDE-LOWER SIDE LEG (MARKED "A2") FOR 48" REMOVABLE STEPS LADDER 12517A	—	unavailable	1	Not available
13	B SIDE-LOWER SIDE LEG (MARKED "B2") FOR 48" REMOVABLE STEPS LADDER 12517B	—	unavailable	1	Not available
14	C SIDE-UPPER SIDE LEG (MARKED "C") FOR 48" REMOVABLE STEPS LADDER 12518	—	unavailable	2	Not available
15	C SIDE-LOWER U-LEG (MARKED "C") FOR 48" REMOVABLE STEPS LADDER 12519	—	unavailable	1	Not available
16	SUPPORT BASE FOR 52" REMOVABLE STEPS LADDER 11356	CZK 200.00	out of stock	2
17	TOP PLATFORM CLASP FOR 48" & 52" REMOVABLE STEPS LADDER 12190	CZK 65.00	out of stock	2

Schema: 28636G INTERNAL PART

schema part no.	spare part name and number	price / pc	availability	recommended quantity	add to cart
1	MAGNETIC ROTOR AND IMPELLER FOR FILTER PUMP MODEL#636G 11286GS	CZK 1,139.00	in stock	1
2	CERAMIC BAR FOR #636T/#636G/635T MOTOR 11287	CZK 183.00	in stock	1
3	RUBBER CAP FOR #636T/#636G MOTOR 11288	CZK 63.00	in stock	2
4	RUB WASHER FOR #636/636G/636T/635/635T MOTOR 10842	—	unavailable	2	Not available

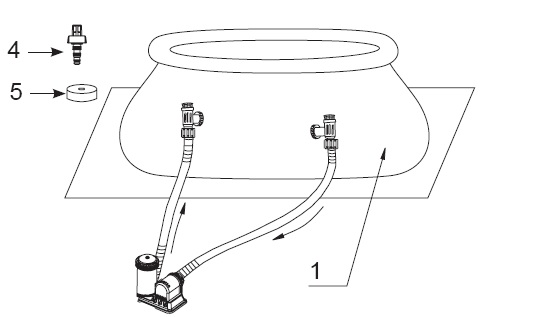

Schema: 18' X 48" EASY SET POOL

schema part no.	spare part name and number	price / pc	availability	recommended quantity

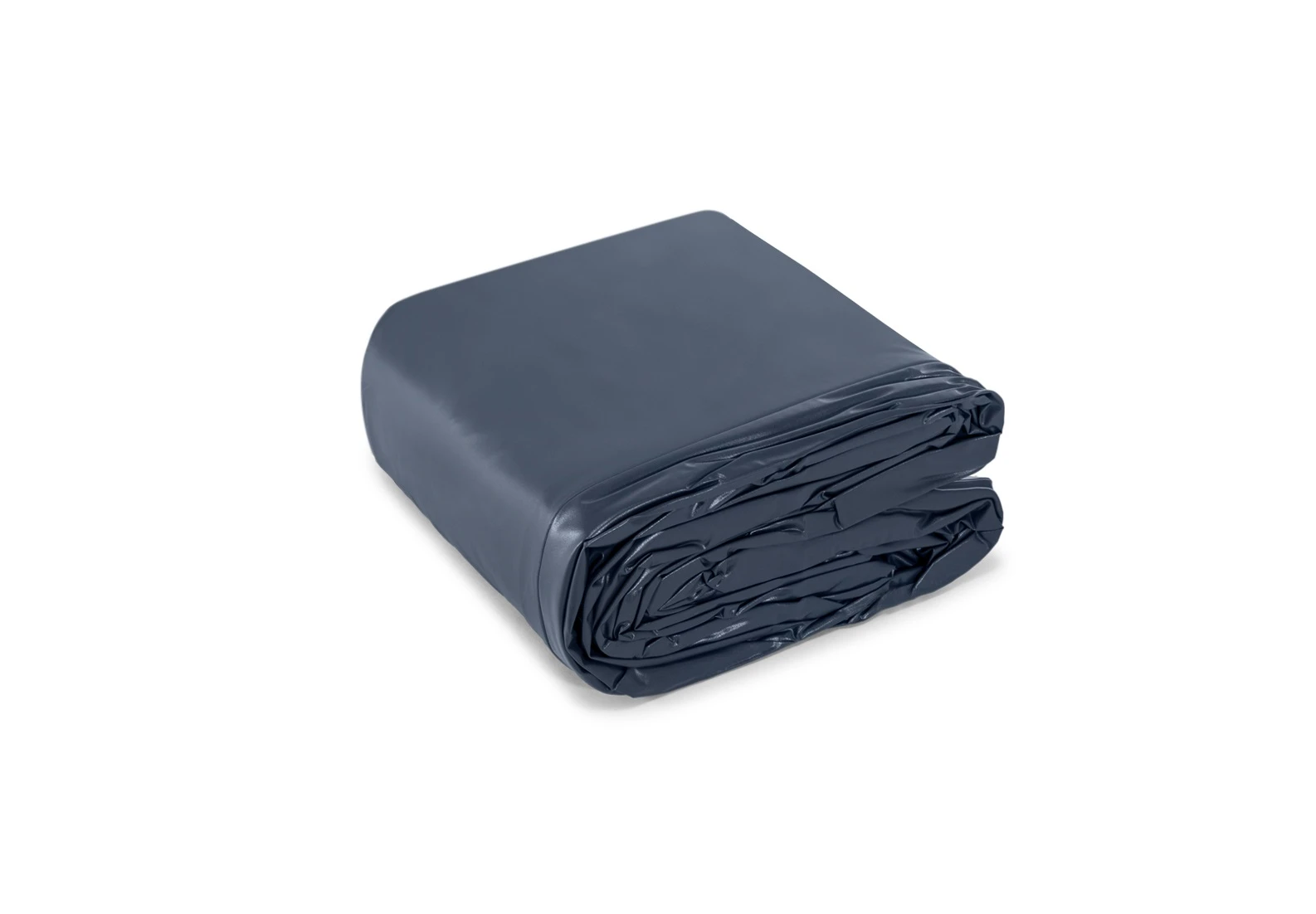

1	18'X48" (5.49MX1.22M) EASY SET POOL LINER 10320	CZK 6,936.00	out of stock	1
4	DRAIN CONNECTOR FOR AGP POOL AND SALTWATER SYSTEM (FOR IO EXCEPT CANADA) 10201	CZK 91.00	out of stock	1
5	DRAIN VALVE CAP FOR 42" HEIGHT AND ABOVE AGP POOL 11044	CZK 71.00	in stock	2
