Intex Ultra XTR Frame Pool Set 610x122 cm, 26334ND Spare Parts

illustrative photo (the specific model may close slightly)

The Ultra XTR Frame pools are top-of-the-line above ground pools from Intex. This pool is easy to assemble and sturdy and durable thanks to the high quality steel. The beautiful blue tile print of the inner liner and the elegant anthracite exterior will elevate any backyard. The pool set includes a sand filter pump, a deluxe safety ladder, a ground cloth and a pool cover for proper maintenance of the product.

Select a season:

Original spare parts for Intex products:

Ultra XTR Frame Pool Set 610x122 cm (2026)

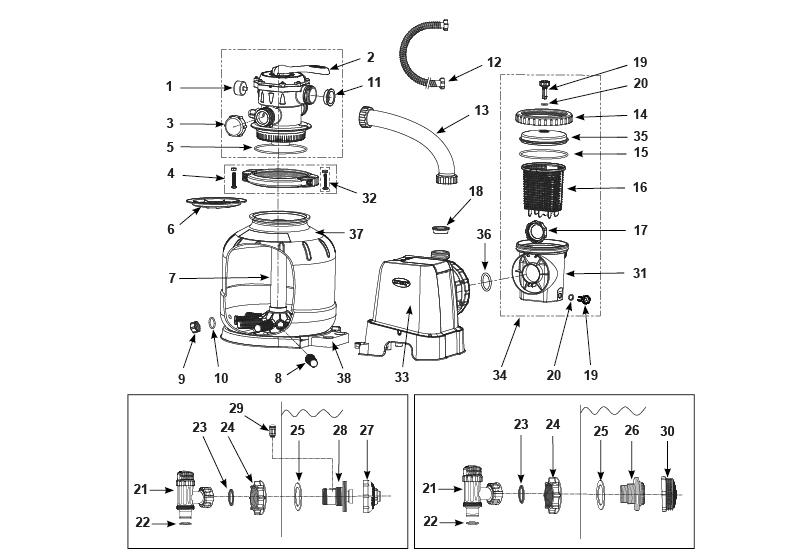

Schema: SX2100 12" SAND FILTER PUMP

schema part no.	spare part name and number	price / pc	availability	recommended quantity
1	PRESSURE GAUGE FOR 12" SAND FILTER PUMP AND 14" SAND FILTER COMBO 11411	CZK 473.00	in stock	1
2	6-WAY VALVE SET FOR 12" SAND FILTER PUMP AND 14" SAND FILTER PUMP COMBO 11378	CZK 1,275.00	in stock	1
3	ELECTROLYTIC CELL COVER/SAND FILTER PUMP DRAIN OUTLET COVER 11131	CZK 95.00	in stock	1
4	CLAMP WITH SCREWS FOR 12" AND 14" SAND FILTER PUMP AND COMBO 11380	CZK 176.00	in stock	1
5	TANK O-RING FOR 12"& 14" SAND FILTER PUMPS AND COMBO 11379	CZK 117.00	in stock	1
6	SAND SHIELD FOR 14" SAND FILTER PUMP AND SAND FILTER PUMP & SALTWATER SYSTEM CG 11382	CZK 127.00	in stock	1
7	CENTER PIPE HUB FOR 12" SAND FILTER PUMP 11815	CZK 190.00	in stock	1
8	LATERAL FOR 12" SAND FILTER PUMP 11484	CZK 102.00	in stock	10
9	DRAIN VALVE CAP FOR SAND FILTER PUMP AND COMBO 11456	CZK 67.00	in stock	1
10	DRAIN VALVE O-RING FOR SAND FILTER PUMP AND COMBO 11385	CZK 56.00	in stock	1
11	L-SHAPE O-RING 11228	CZK 104.00	in stock	4
12	3M X 1-1/2" DIA PUMP HOSE WITH NUTS 11010	CZK 369.00	in stock	2
13	INTERCONNECTING HOSE FOR 12" SAND FILTER PUMP 11820	CZK 208.00	in stock	1
14	LEAF TRAP NUT 11822	CZK 183.00	in stock	1
15	LEAF TRAP O-RING FOR 12" SAND FILTER PUMP 11824	CZK 161.00	in stock	1
16	BASKET 11821	CZK 172.00	in stock	1
17	FILTER HOUSING NUT 11261	CZK 89.00	in stock	1
18	L-SHAPE O-RING FOR SAND FILTER PUMP MOTOR 11412	CZK 87.00	in stock	1
19	AIR RELEASE VALVE/SEDIMENT RELEASE VALVE 10460	CZK 63.00	in stock	2
20	AIR RELEASE VALVE O-RING 10264	CZK 50.00	in stock	2
21	PLUNGER VALVE 10747	CZK 217.00	in stock	2
22	HOSE O-RING 10262	CZK 54.00	in stock	2
23	STEP WASHER 10745	CZK 65.00	in stock	2
24	STRAINER NUT 10256	CZK 65.00	in stock	2
25	FLAT STRAINER RUBBER WASHER 10255	CZK 76.00	in stock	2
26	THREADED STRAINER CONNECTOR 10744	CZK 159.00	in stock	1
27	ADJUSTABLE POOL INLET JET NOZZLE 12369	CZK 180.00	in stock	1
28	INLET THREADED AIR CONNECTOR 1050-1900 12371	CZK 233.00	in stock	1
29	AIR JET VALVE 12363	CZK 112.00	in stock	1
30	STRAINER GRID FOR ABOVE 1000GPH CARTRIDGAE/SAND FILTER PUMP (ONLY AVAILABLE FOR COUNTRIES W/ 220-240V) 12198	CZK 106.00	in stock	1
31	PRE-FILTER CONTAINER FOR 12" SAND FILTER PUMP 12100	CZK 165.00	in stock	1
32	SCREW FOR 14" SAND FILTER PUMP AND SAND FILTER PUMP & SALTWATER SYSTEM CG 11381	CZK 89.00	in stock	2
33	PUMP MOTOR & CONTROL FOR 12" SAND FILTER PUMP 26646 12706	CZK 3,889.00	in stock	1
34	PRE-FILTER ASSEMBLY FOR 28645/28646 11826	CZK 525.00	in stock	1
35	LEAF TRAP COVER FOR 12" SAND FILTER PUMP 11823	CZK 180.00	in stock	1
36	O-RING FOR SAND FILTER PUMP MOTOR INLET 11457	CZK 89.00	in stock	2
37	TANK FOR 12" SAND FILTER PUMP 12712	CZK 876.00	in stock	1
38	12" SAND FILTER PUMP TANK BASE 12716	CZK 224.00	in stock	1
39	AIR JET VALVE CAP 12373	CZK 61.00	in stock	1

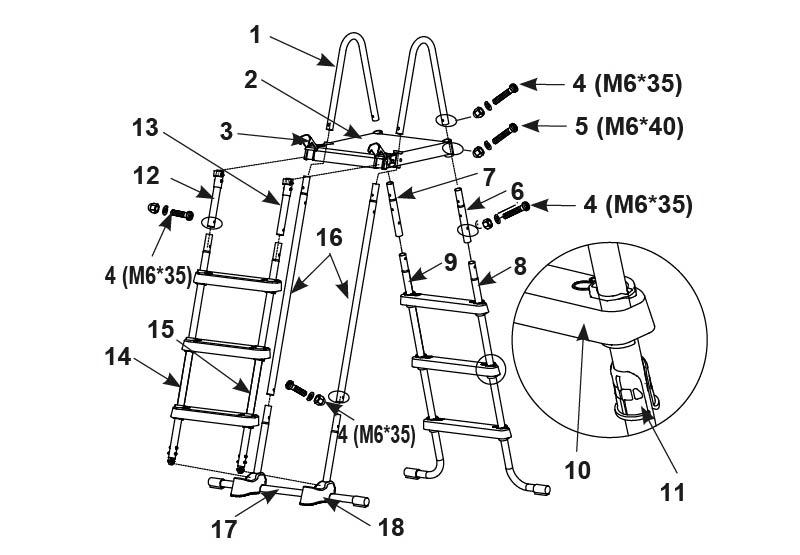

Schema: 48" LADDER WITH REMOVABLE STEPS

schema part no.	spare part name and number	price / pc	availability	recommended quantity
1	U-SHAPED TOP RAIL FOR 48" & 52" REMOVABLE STEPS LADDER (28073/28074) 12512A	CZK 188.00	out of stock	2
2	TOP PLATFORM FOR 48" & 52" REMOVABLE STEPS LADDER 12182	CZK 517.00	out of stock	1
3	TOP PLATFORM CLASP FOR 48" & 52" REMOVABLE STEPS LADDER 12190	CZK 65.00	out of stock	2
4	SHORT FASTENER FOR TOP RAIL 10810	CZK 67.00	in stock	11
5	LONG FASTENER FOR TOP BRACE 10227	CZK 67.00	in stock	5
6	A SIDE UPPER SIDE LEG (MARKED "A") FOR 48" REMOVEABLE STEPS LADDER 12669AA	CZK 182.00	out of stock	1
7	A SIDE UPPER SIDE LEG (MARKED "B") FOR 48" REMOVEABLE STEPS LADDER 12669AB	CZK 182.00	out of stock	1
8	A SIDE LOWER J-LEG (MARKED "A") FOR 48" REMOVEABLE STEPS LADDER 12670AA	CZK 364.00	out of stock	1
9	A SIDE LOWER J-LEG (MARKED "B") FOR 48" REMOVEABLE STEPS LADDER 12670AB	CZK 364.00	out of stock	1
10	STEP FOR GREY LADDER 12629	CZK 245.00	out of stock	6
11	STEP SLEEVE FOR GREY LADDER (WHITE) 12630	CZK 73.00	in stock	12
12	B SIDE UPPER SIDE LEG (MARKED "A1" ) FOR 48" & 52" REMOVABLE STEPS LADDER 12653AA	CZK 171.00	out of stock	1
13	B SIDE UPPER SIDE LEG (MARKED "B1" ) FOR 48" & 52" REMOVABLE STEPS LADDER 12653AB	CZK 171.00	out of stock	1
14	B SIDE LOWER LEG (MARKED "A1" ) FOR 48" REMOVABLE STEPS LADDER 28076 12651AA	CZK 260.00	out of stock	1
15	B SIDE LOWER LEG (MARKED "B1" ) FOR 48" REMOVABLE STEPS LADDER 28076 12651AB	CZK 260.00	out of stock	1
16	C SIDE UPPER LEG (MARKED "C") FOR 48" REMOVABLE STEPS LADDER 28076 12652A	CZK 219.00	out of stock	2
17	C SIDE LOWER LEG (MARKED "C") FOR 42", 48" & 52" REMOVABLE STEPS LADDER 12650A	CZK 504.00	out of stock	1
18	SUPPORT BASE FOR 52" REMOVABLE STEPS LADDER 11356	CZK 200.00	out of stock	2

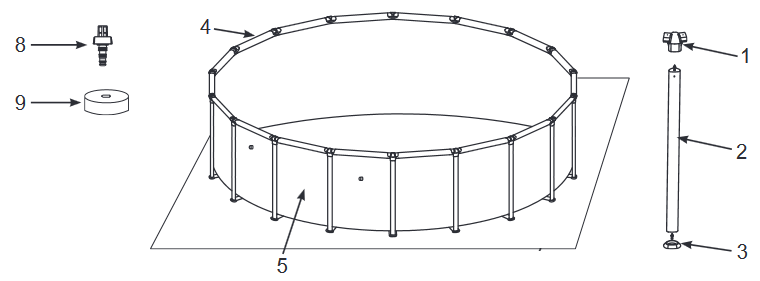

Schema: 20'X 48" ULTRA FRAME POOL

schema part no.	spare part name and number	price / pc	availability	recommended quantity	add to cart
1	LEG & BEAM JOINT FOR 15' & ABOVE ROUND ULTRA XTR FRAME POOL 12427B	CZK 232.00	in stock	20
2	VERTICAL LEG FOR 15'X48", 16'X48", 18'X48" AND 20'X48" ROUND ULTRA XTR FRAME POOL 12429A	CZK 334.00	in stock	20
3	LEG CAP FOR 15'X48", 16‘X48“, 18'X48", 18’X52”, 20'X48" & 24'X52" ULTRA XTR FRAME POOL 11453	CZK 110.00	in stock	20
4	HORIZONTAL BEAM FOR 15' & ABOVE ROUND ULTRA XTR FRAME POOL 12428A	CZK 297.00	in stock	20
5	20'X48" (6.10MX1.22M) ROUND ULTRA XTR FRAME POOL LINER 12443ND	—	unavailable	1	Not available
8	DRAIN CONNECTOR FOR AGP POOL AND SALTWATER SYSTEM (FOR IO EXCEPT CANADA) 10201	CZK 91.00	out of stock	1
9	DRAIN VALVE CAP FOR 42" HEIGHT AND ABOVE AGP POOL 11044	CZK 71.00	in stock	2
	BELT TIGHTENING KIT FOR 20' ROUND XTR ULTRA FRAME POOL 13703	—	unavailable	1	Not available

Others

spare part name and number	price / pc	availability	recommended quantity
POOL COVER FOR 20' ROUND METAL FRAME POOL 11289	CZK 1,176.00	in stock	1
GROUND CLOTH FOR 20'X48"ULTRA XTR FRAME POOL 11290	CZK 1,231.00	out of stock	1
REPAIR SWATCH (WITHOUT GLUE) FOR ULTRA XTR FRAME POOL 11410B	CZK 118.00	in stock	1
PCBS FOR SAND FILTER PUMP (FOR 220V VERSION) 13037	CZK 570.00	in stock	1
